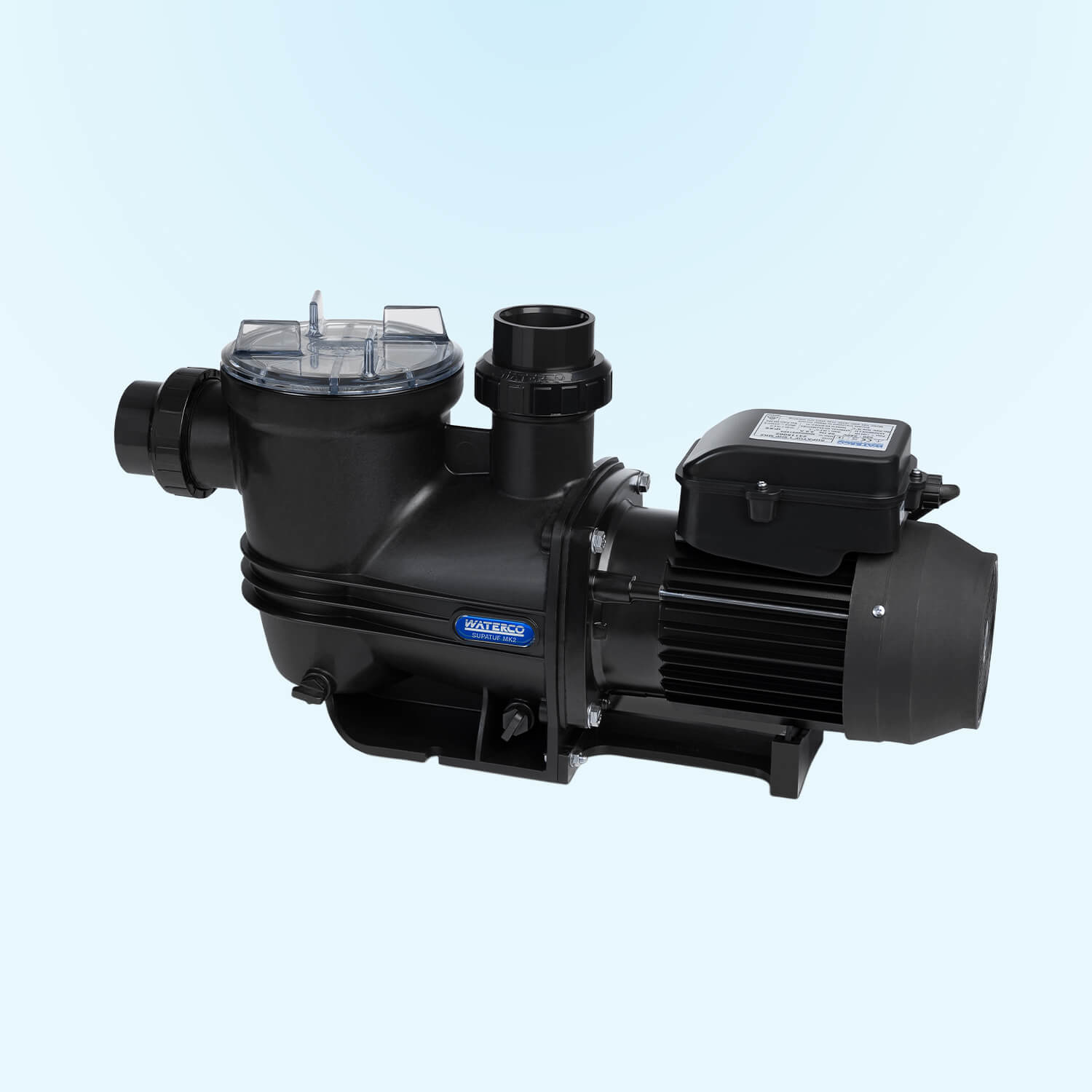

Supatuf MK2

Our Supatuf MK2 pump is ideal for large domestic swimming pools with ancillary systems such as heating, infloor cleaning, fountains, vacuum cleaning and swim jets.

Search for the store name to inquire about availability.

Product Details

  • Hydraulically efficient impeller and diffuser design shortens run times and reduces energy consumption
  • Engineered durability with strong single piece glass filled thermoplastic pump body
  • High grade carbon/graphite mechanical seal with 316 stainless steel spring assembly
  • Secondary seal for extra protection of the pump motor
  • Quick connect barrel unions for UPVC pipe
  • 2.1L strainer basket capture debris and protects the pumps
  • Clear basket lid for visibility
  • Stable support base
  • Drain plugs



High performance motor:

  • IP44 rating
  • Motor shaft 303 grade stainless steel
  • Fan cooled
  • Thermal overload protection



Product Specifications

Model Flow Rate (lpm) Nom. HP kW Amps Total Length (mm) Motor Frame (mm)
8m 10m
Supatuf MK2 100 275 240 1.00 0.84 3.70 602 71
Supatuf MK2 150 355 305 1.50 1.15 5.30 623 80
Supatuf MK2 200 465 410 2.00 1.50 7.20 663 80
