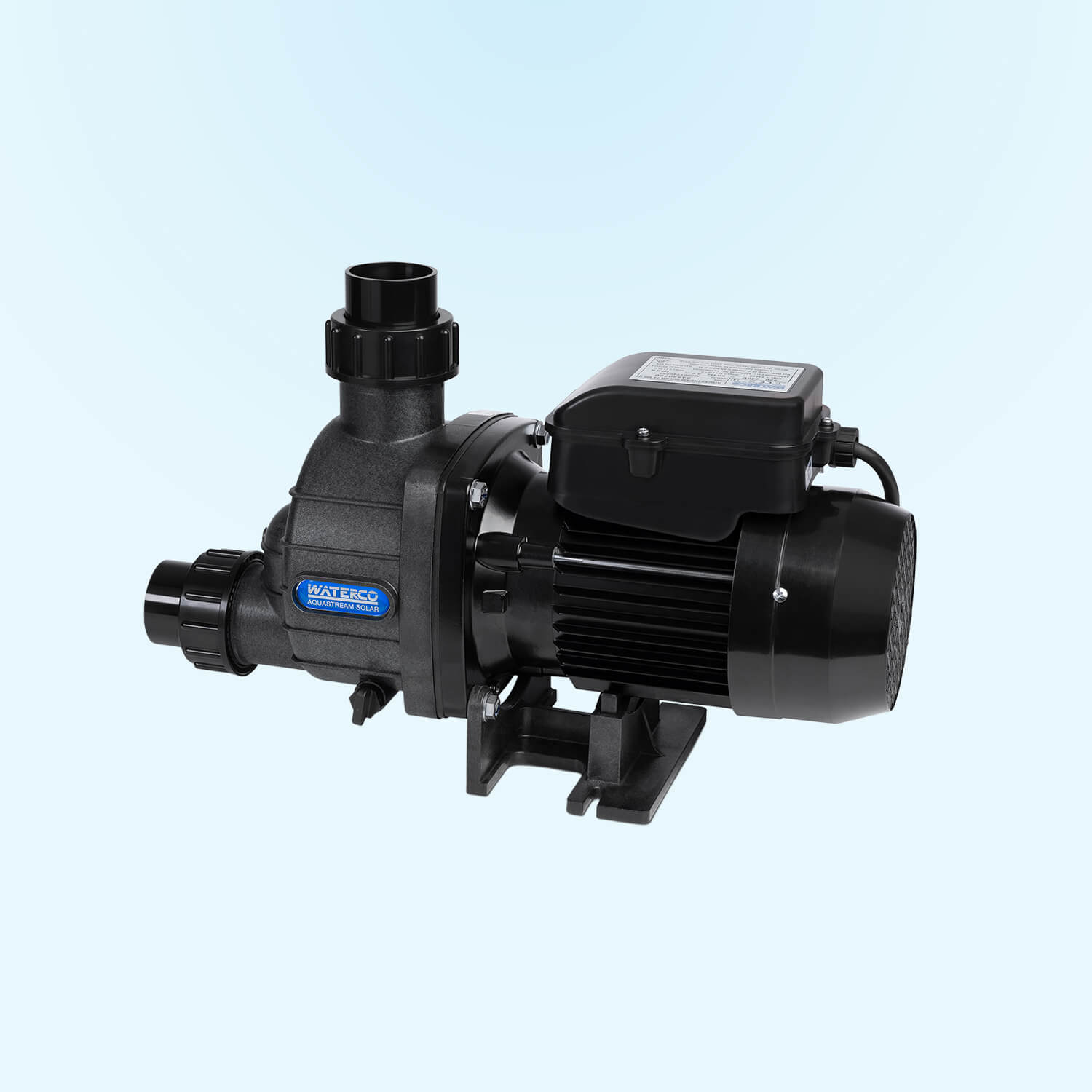

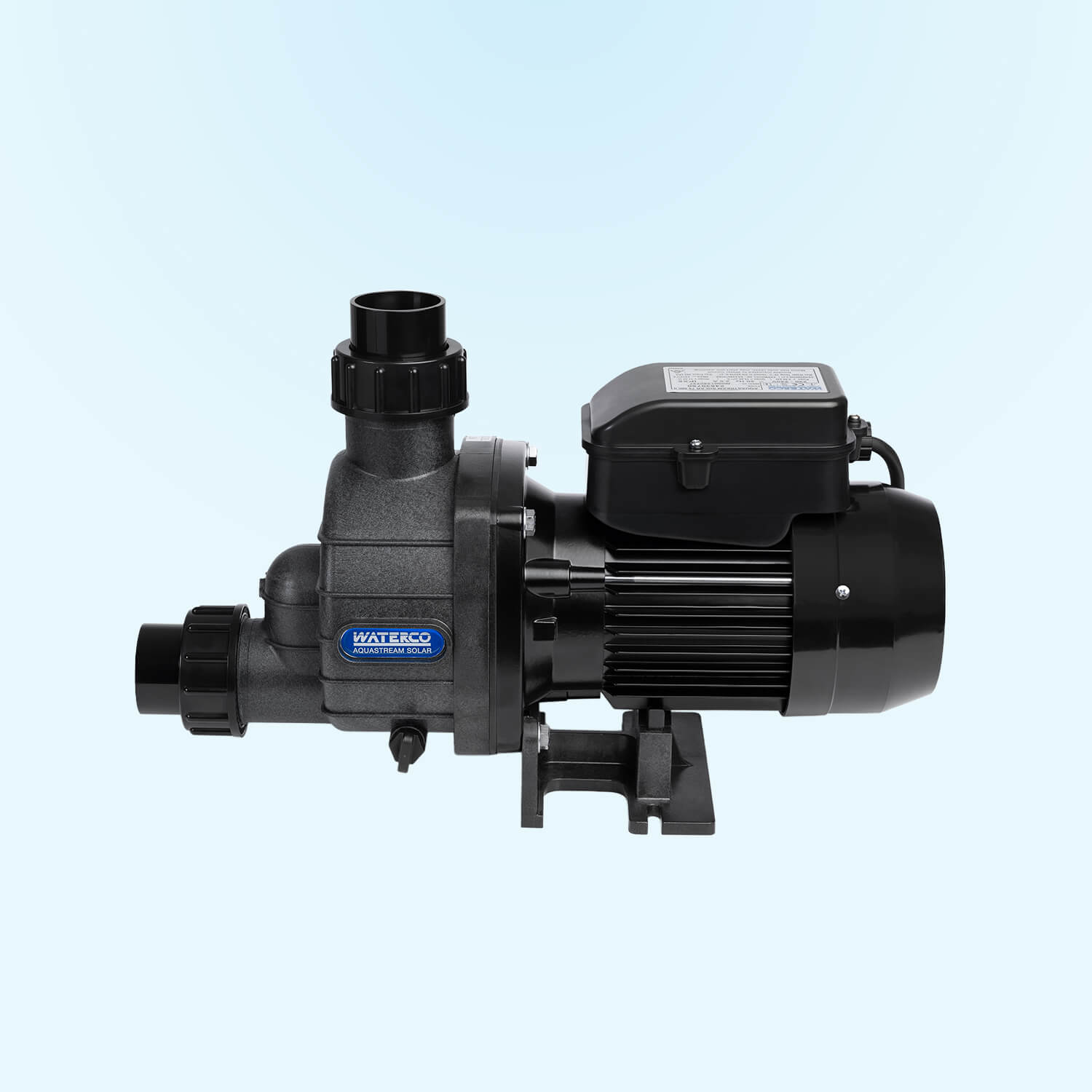

Aquastream Solar
Our Aquastream Solar pump is simple to operate and easy to maintain. Well-known for its quietness and reliability, they incorporate essential features required to make them compatible with solar pool heating systems.
Find a Swimart
Product Details
- Hydraulically efficient impeller/diffuser design
- Glass filled thermoplastic pump body
- Mechanical seal – high grade carbon/graphite with 316 stainless steel
- Secondary seal – protects the pump motor end shield from any water contact, by capturing any leaks through a worn out mechanical seal and draining it out of the pump
- Solar check valve prevents water from flowing back to the pump
- 40mm male BSP threaded on body, barrel unions supplied for 40mm UPVC pipe inlet/outlet
- Drain pipe
- 7 star energy rating
Heavy-duty motor:
- IP44 for Australian/NZ market and IP55for overseas market
- Motor shaft 303-grade stainless steel
- Fan cooled
- Thermal overload protection
- Insect and vermin resistant
Product Specifications
| Model | Nominal HP | KW | Amps | Phase | Volts | Cycle | RPM |
|---|---|---|---|---|---|---|---|
| Aquastream Solar 50 | 0.5 | 0.58 | 2.5 | 1 | 220 - 240 | 50 | 2860 |
| Aquastream Solar 75 | 0.75 | 0.65 | 3.0 | 1 | 220 | 50 | 2860 |
| Aquastream Solar 100 | 1.00 | 0.76 | 3.33 | 1 | 220 | 50 | 2860 |
| Aquastream Solar 150 | 1.50 | 1.15 | 5.0 | 1 | 220 | 50 | 2860 |
