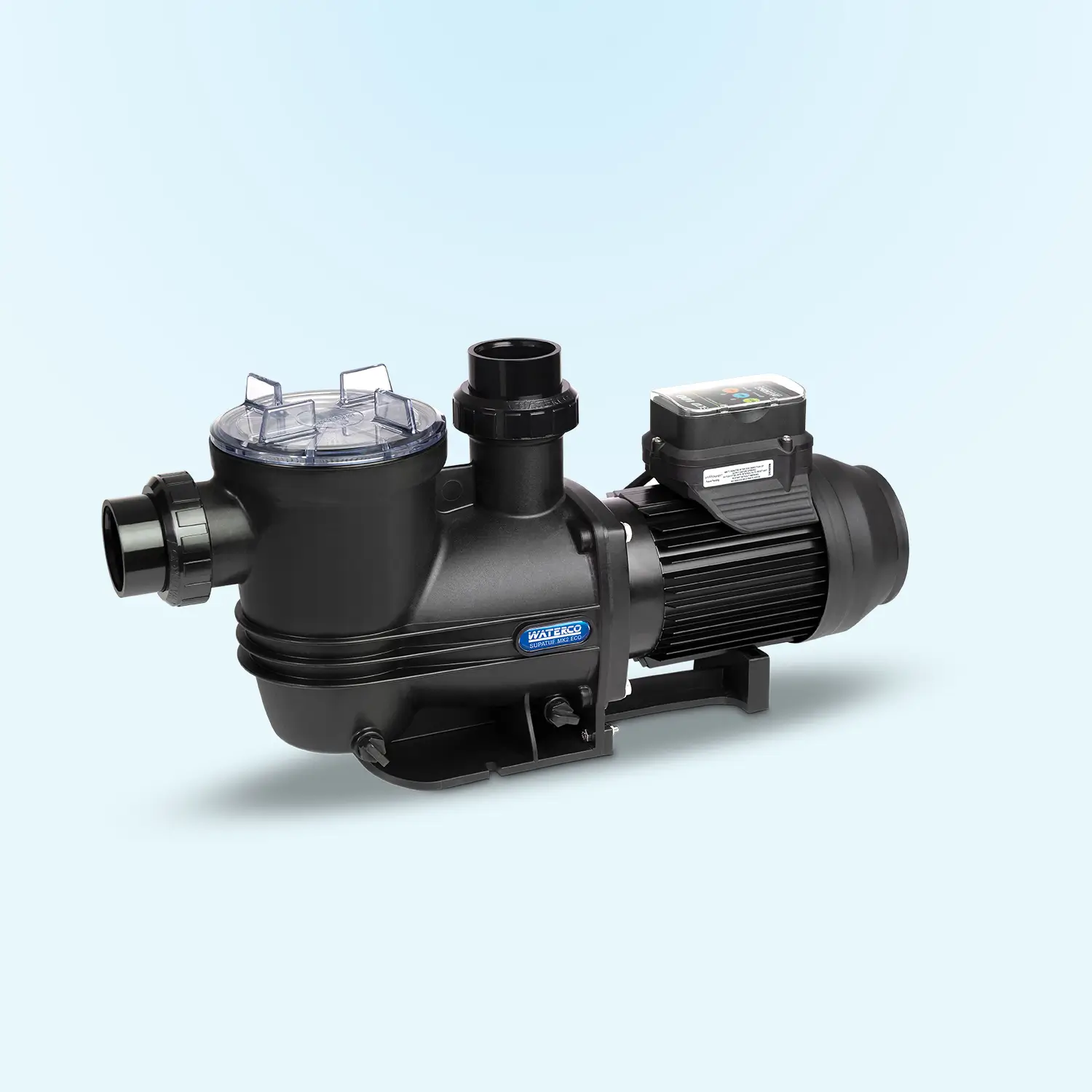

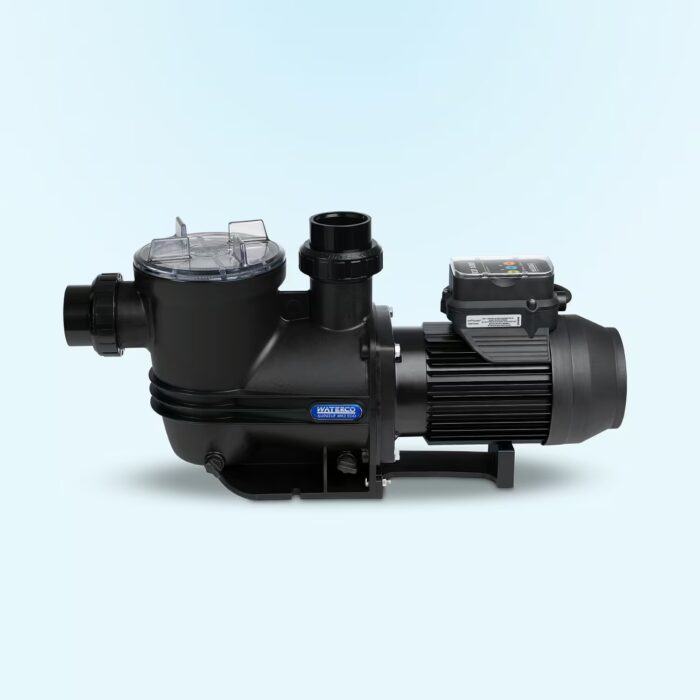

Supatuf MK2 ECO 100

Our Supatuf MK2 ECO 100 pump is ideal for large domestic swimming pools with ancillary systems such as heating, in-floor cleaning, fountains, vacuum cleaning and swim jets. Equipped with an energy-saving 3-speed motor, the Supatuf MK2 ECO 100 is capable of lowering its energy usage and reducing its operating noise levels.

Search for the store name to inquire about availability.

Product Details

  • Ultra quiet operation as low as 66.5 dBA
  • Energy rating of 7 Stars, energy savings of up to 70%
  • Variable 3 speed brushless DC motor
  • UV stabilised & corrosion resistant
  • High grade carbon/graphite mechanical seal with 316 stainless steel spring assembly
  • Clear basket lid for visibility – capture debris and protects the pumps impeller
  • 50mm ports / 50mm unions
  • Secondary seal protects the pump motor’s end shield from any water contact

High performance motor:

  • IP44 rating
  • Motor shaft 303 grade stainless steel
  • Fan cooled thermal overload protection





Product Specifications

  • Energy Rating of 7 Stars
  • Horsepower – 1.0hp
  • 3-year limited warranty
  • Product weight of 12kg
  • AMPS & WATTS 27 kW & 2.1 Amps
  • Dimensions – 635(L) x 210(H) x 179(W) mm 635(L) x 311(H) x 175(W) mm
Length (mm) Height Width Packaged Weight (kg) Inlet/Outlet (mm) Strainer Basket (lt)
635 310 179 12 50/40 1.5
Low speed (1900rpm)
Pump Total Head (m) Flow Rate (lpm) Motor Input (kW) Amps Noise Level (dBA)
2.4 214 0.27 2.1 58.8
4.4 169 0.27 2.1 58.4
5.6 118 0.25 1.9 58.7
Medium speed (2410rpm)
Pump Total Head (m) Flow Rate (lpm) Motor Input (kW) Amps Noise Level (dBA)
5.6 247 0.52 3.9 60.9
8.1 184 0.50 3.8 61.3
9.6 125 0.45 3.4 61.7
High speed (2850rpm)
Pump Total Head (m) Flow Rate (lpm) Motor Input (kW) Amps Noise Level (dBA)
7.3 297 0.84 6.5 63.5
11.2 219 0.79 5.9 63.3
13.4 148 0.71 5.3 63.6
