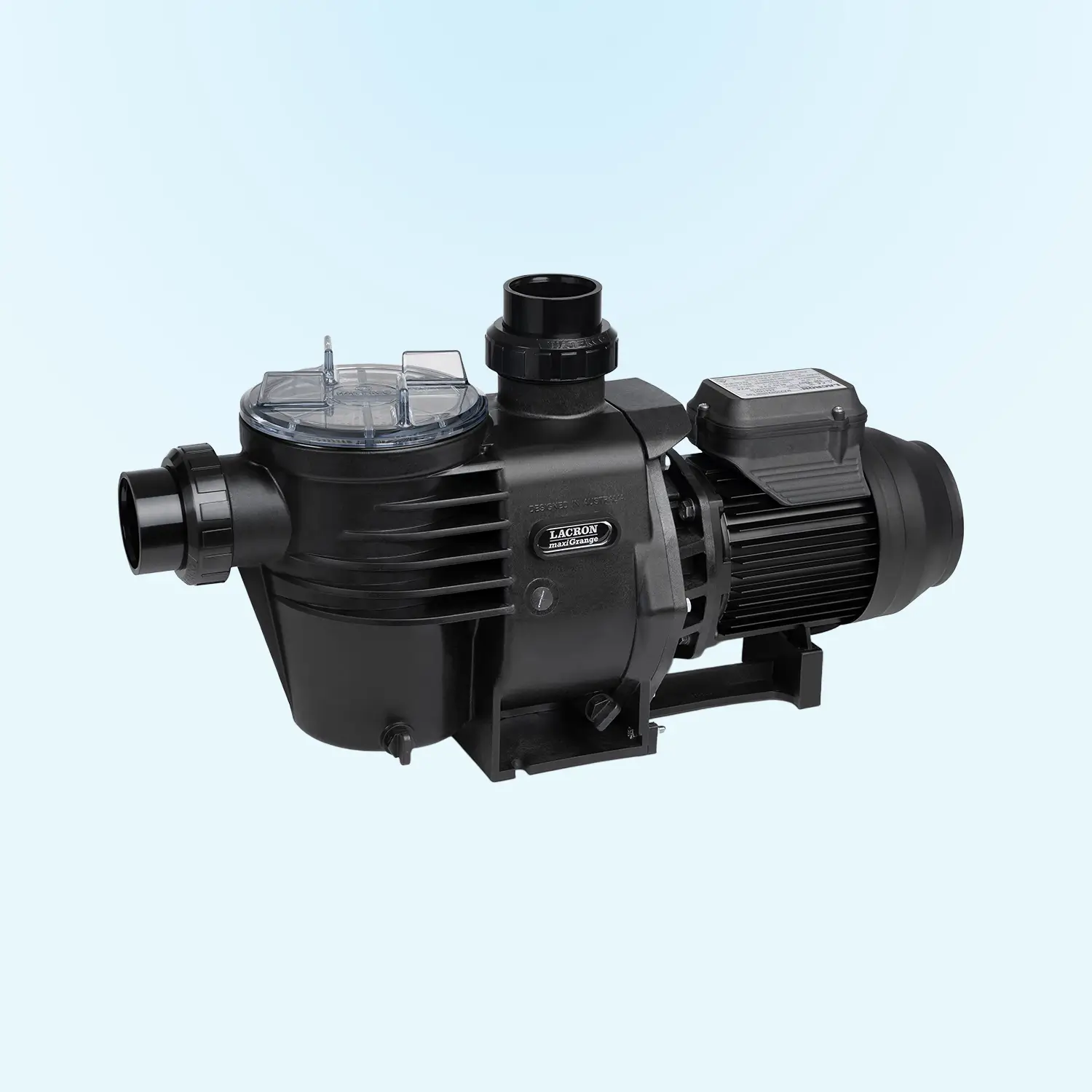

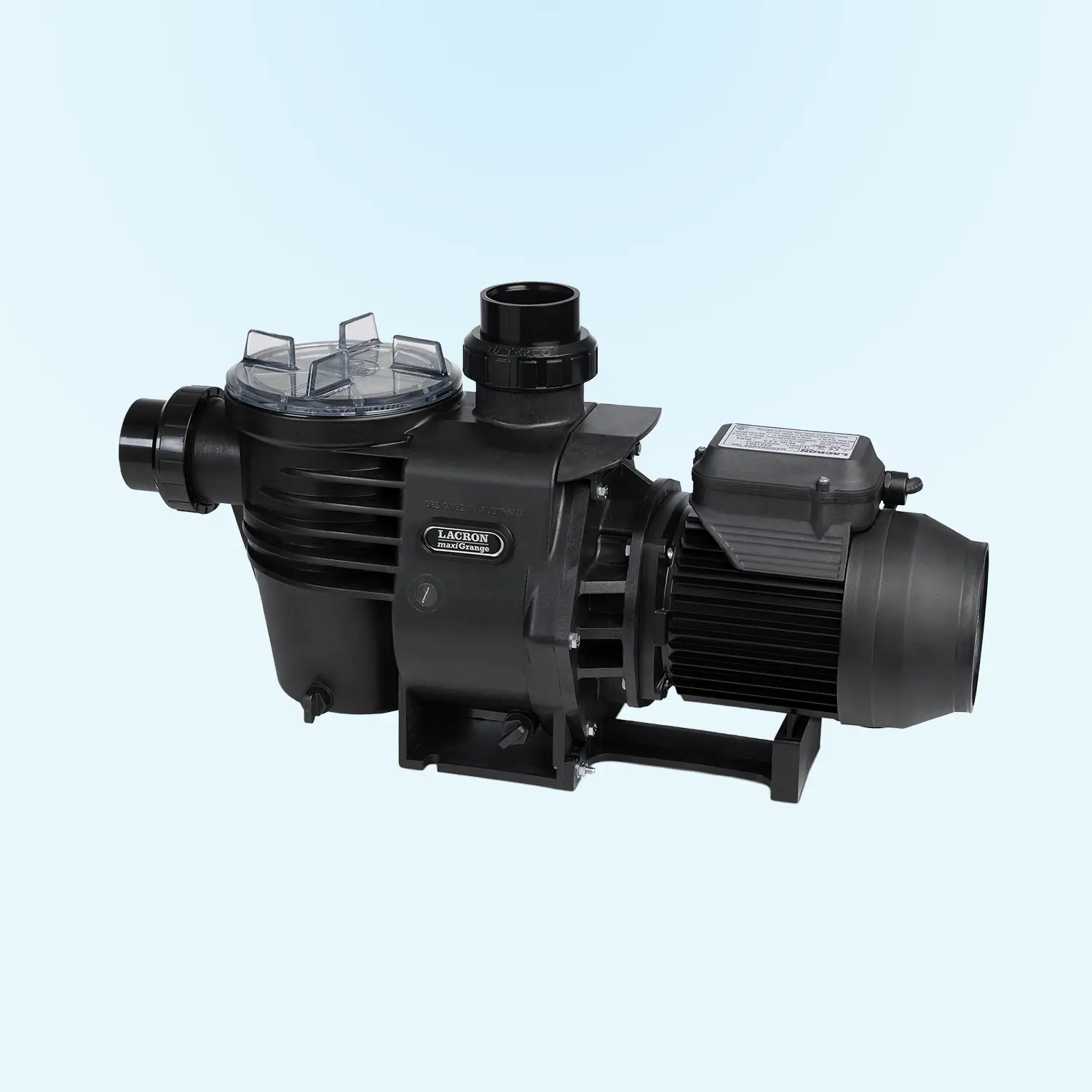

Lacron MaxiGrange
Our Lacron maxiGrange is a high performance pump that has the extra power required to efficiently run larger swimming pools, water features, infloor cleaners, vacuum cleaners and swim spa jets. The Lacron maxiGrange is exclusive to Swimart.
Find a Swimart
Product Details
- Built to last with a strong, single piece glass filled thermoplastic body that is UV and corrosive resistant
- Trouble free performance – 100, 125 and 150 motors with double insulated water circuit, IP55 rated and 431 grade stainless steel shaft for long life and high performance
- High grade carbon/graphite mechanical seal with 316 stainless steel spring assembly gives your motor added protection.
- Low operating cost – efficient hydraulic performance shortens run times, reducing power consumption
Product Specifications
- Inlet/Outlet – 50mm
- Strainer basket size – 2.1L
- Phase – 1
- Volts: 220-240
- Cycle 50
- RPM – 2860
| Model | Flow Rate (lpm) | Nom HP | KW | Amps | Total Length | Motor Frame | |
|---|---|---|---|---|---|---|---|
| 8m | 10m | ||||||
| 100 | 248 | 219 | 1.00 | 0.91 | 4.00 | 600 | 71 |
| 150 | 336 | 309 | 1.50 | 1.31 | 5.80 | 647 | 80 |
