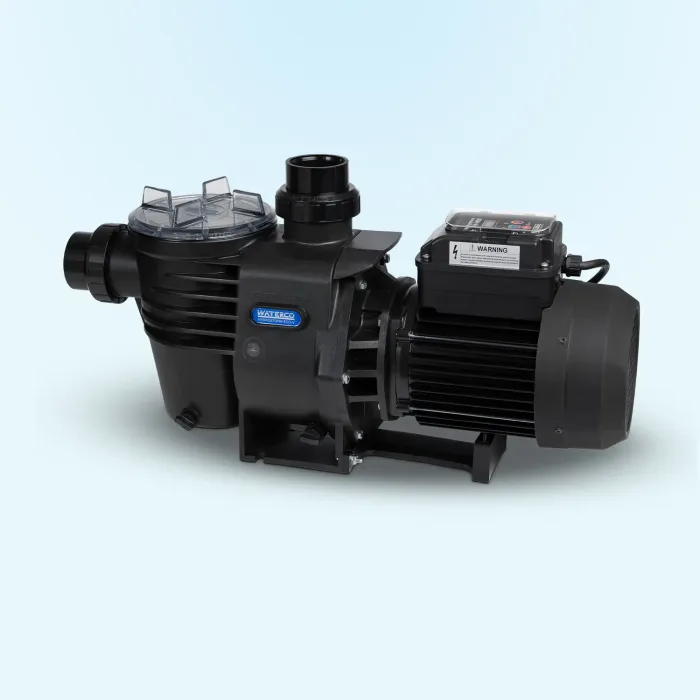

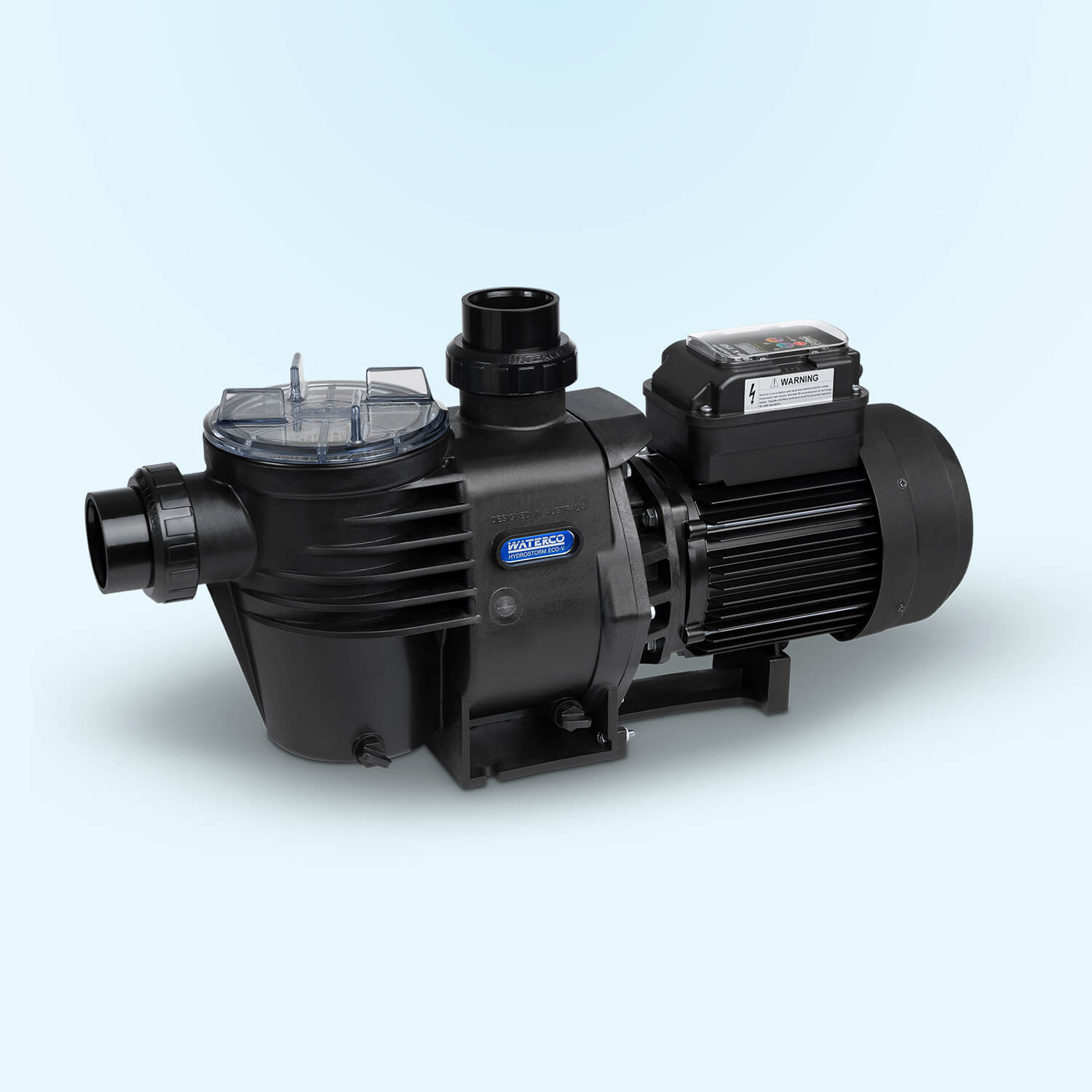

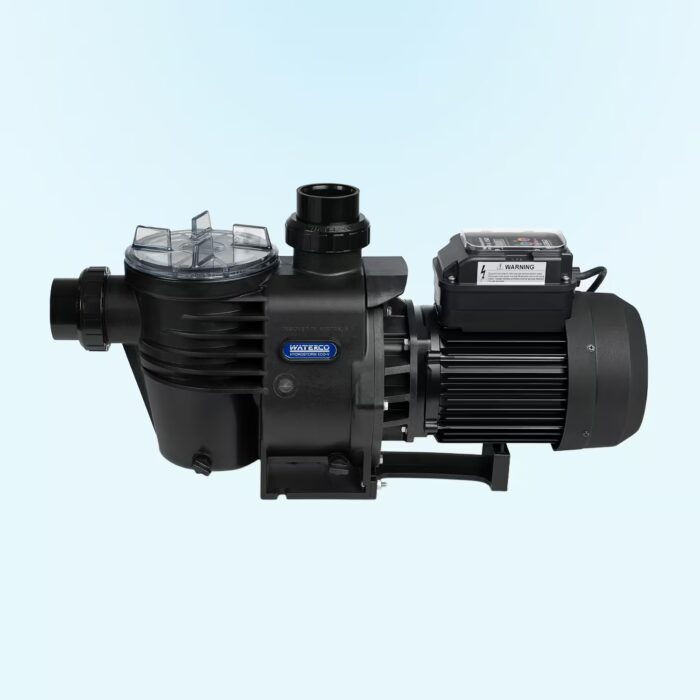

Hydrostorm ECO-V 150
Our Hydrostorm ECO-V 150 is designed to have all the extra power you need to cope with modern day swimming pool designs. Equipped with an energy saving variable speed motor that offers the finest adjustment in operating speed with 25 RPM increments, it allows the pump’s motor speed to perfectly match the flow requirements of the swimming pool, maximising energy savings and minimising pump noise.
Find a Swimart
Product Details
- Variable 3 speed control – ranging from 1000 to 2850 RPM (adjustable by 25 RPM increments), IP55 rating
- Hydraulically efficient impeller and diffuser design
- Fan cooled thermal overload protection
- UV stabilised & corrosion resistant
- 50mm quick connect barrel unions for UPVC pipe
- Clear basket lid & large 2.1 litre strainer basket
- High grade carbon / graphite mechanical seal with 316 stainless steel spring assembly
- Strong single piece glass filled thermoplastic pump body
- Drain plugs
- Stable support base
- 8 Star Energy Rating
- 3-year limited warranty
Product Specifications
| Length (mm) | Height (mm) | Width (mm) | Packaged Weight (kg) | Inlet/Outlet (mm) | Strainer Basket (lt) |
|---|---|---|---|---|---|
| 771 | 340 | 227 | 14 | 50 | 2.1 |
ECO-V speed (1300rpm)
| Pump Total Head (m) | Flow Rate (lpm) | Motor Input (kW) | Amps | Noise Level (dBA) |
|---|---|---|---|---|
| 1.7 | 150 | 0.16 | 1.4 | 55.7 |
| 2.2 | 131 | 0.16 | 1.4 | 56.0 |
| 2.6 | 118 | 0.16 | 1.4 | 55.6 |
ECO speed (1900rpm)
| Pump Total Head (m) | Flow Rate (lpm) | Motor Input (kW) | Amps | Noise Level (dBA) |
|---|---|---|---|---|
| 3.0 | 246 | 0.42 | 3.2 | 58.7 |
| 4.2 | 216 | 0.42 | 3.2 | 59.0 |
| 5.5 | 185 | 0.42 | 3.2 | 61.5 |
Medium speed (2410rpm)
| Pump Total Head (m) | Flow Rate (lpm) | Motor Input (kW) | Amps | Noise Level (dBA) |
|---|---|---|---|---|
| 5.2 | 309 | 0.78 | 5.5 | 69.7 |
| 6.9 | 280 | 0.78 | 5.5 | 71.4 |
| 8.8 | 240 | 0.78 | 5.5 | 71.5 |
High speed (2850rpm)
| Pump Total Head (m) | Flow Rate (lpm) | Motor Input (kW) | Amps | Noise Level (dBA) |
|---|---|---|---|---|
| 6.4 | 375 | 1.25 | 8.5 | 78.3 |
| 9.5 | 336 | 1.26 | 8.6 | 77.3 |
| 12.3 | 290 | 1.26 | 8.6 | 76.3 |
