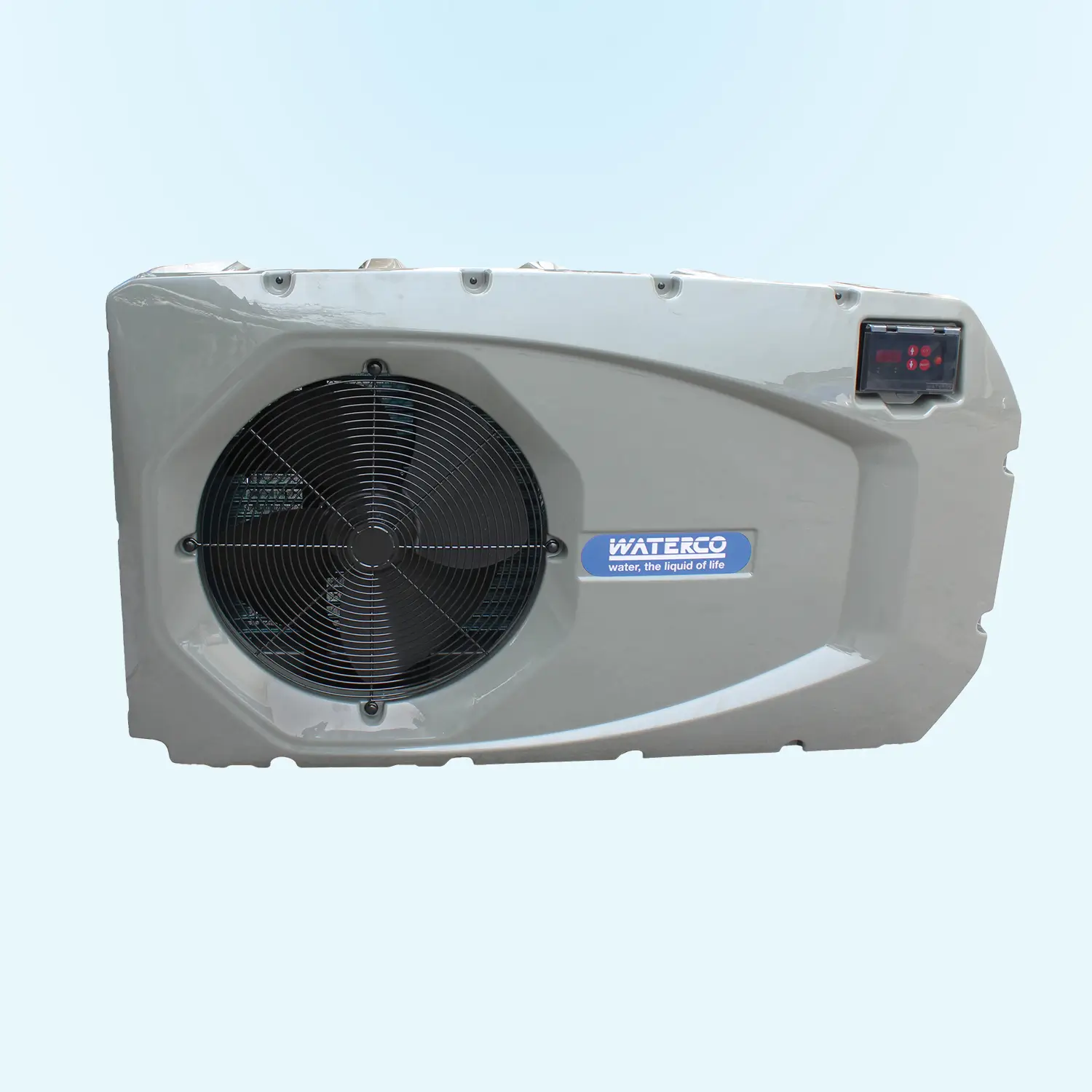

Electroheat MKV

Our Electroheat MKV heat pumps are designed with ease of use and maintenance firmly in mind. Built with ozone friendly R410A refrigerant, it is kinder to the environment and also improves the heat pump’s performance. The LED control panel features a continuous digital pool temperature display and incorporates a self diagnosis system. In the event of a problem, the control panel will display diagnostic error codes.

Search for the store name to inquire about availability.

Product Details

  • Smart controls for temperature management and self diagnosis
  • Inbuilt safety devices for water flow, refrigerant level and compressor startup delay
  • Powerful heat transfer through the coiled heat exchanger maximising water contact
  • Dual coil titanium – heat exchanger is highly resistant to ozone, iodine, baquacil, salt and chlorinated water
  • Scroll compressor for improved efficiency and high performance
  • Weatherproof cabinet for outdoor installation
  • R410A refrigerant gas, ozone friendly and maximises performance
  • Large blue fin evaporator area to extract more ambient heat
  • Available in 9, 12, 15, 19 & 23kW heating capacities

Product Specifications

Specifications
Nominal Power Output (kW)* 9 12 15 19 23
Nominal Heating Capacity BTU* 30700 41000 51000 64000 78500
Product Code 278095 278123 278152 278192 278232
Power Output (kW): Air 26C / Water 26C / RH63% 8.9 11.7 13.5 18.5 21.8
COP 5.9 6.1 6.1 6.3 6.2
Supply Voltage (VAC) 240 240 240 240 240
Supply Voltage Phase Single Phase
Power Consumption (kW/h) 1.5 1.9 2.2 2.9 3.5
Full Load Amps 9 12 12 22 30
Minimum Breaker or Fuse (AMP) 16 20 20 30 40
Electrical Connection 10A plug 15A plug Terminals
Min. / Max. Ambient Air Temperature (C) 10 / 40
Min. / Max. water inlet temp (C) 18 / 40
Water Connections (mm) 40mm
Bypass External 3 x 2 way
Min. / Max. Water Flow Rate LPM 120 - 230
Unit Dry Weight (kg) 51 55 79
Dimensions W x L x H (mm) 1269 x 361 x 717
Refrigerant R410A
Heat Exchanger Max. pressure 3.5 bar / 350 kPa
